LiTime 12VOLT 100AH SMART COMFLEX BLUETOOTH

325.00
In stock
Ordered before 16:00=same day shipping. (mo-fri)info

Add to wishlist


  •  Excellent customer reviews.
  • Check Over 30 years experience.
  • Check Fast EU shipping.

PLEASE CHECK BEFORE PURCHASING:

Is your charger suitable for LiFePo technology.
The size of the battery, fits it in the intended space.

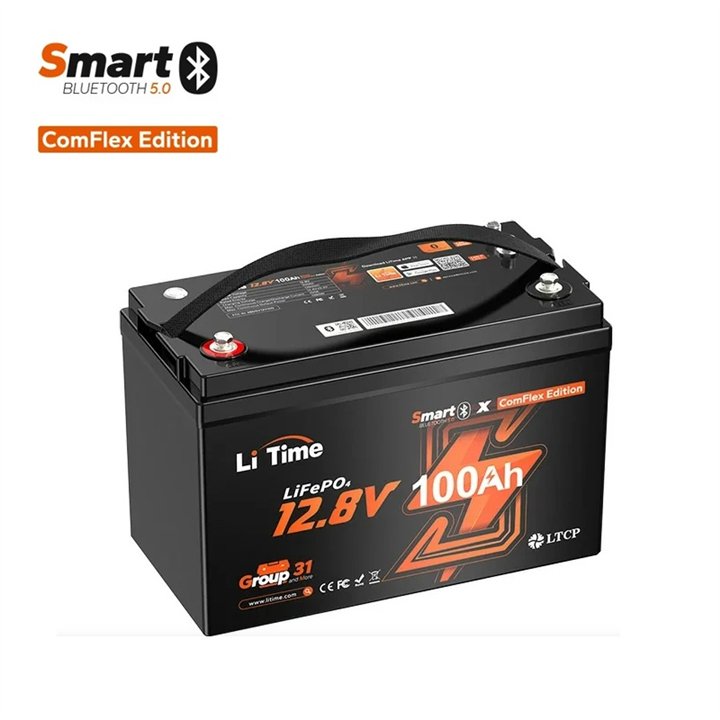

LiTime 12VOLT 100AH ​​SMART COMFEX



Li-Time 12volt 100Ah Smart Comflex, specially developed for use in combination with Victron. Direct communication via CAN/RS485

    • Plug and Play with Victron system: Direct connection to your Victron system – for easy management and system monitoring.
    • Powerful yet compact: 2/3 lighter, 1/4 smaller, 2x as much energy as a 12V100Ah lead-acid battery.
    • Long-lasting power: 1280 Wh energy, 1280 W output power.
    • More power with less weight: 8x higher mass energy density (60.95 Wh/lbs versus 7.23 Wh/lbs of a Group 24 AGM battery).
    • EV-Grade LiFePO4 cells: 4000-15000 deep cycles.
    • LiTime 1st Gen 100A BMS: Protection against overcharging, deep discharging, overcurrent, overheating, and short circuits.
    • Bluetooth: View the battery status at a glance with the built-in Smart 5.0 Bluetooth function.
    • High discharge current: 100A continuous discharge/charge current, 500A/1S continuous discharge current.
    • Max. 4P4S configuration: Build a 51.2V 400Ah system, expandable energy up to 20.48kWh.
    • Faster charging: 10x faster charging, 2x longer runtime.
    • Application: Specially developed for electric (trolling) motors in fishing boats
    • Suitable for all weather conditions: IP65 waterproof, ideal for marine or wet environments.
    • Low temperature protection: Protects your battery in cold conditions.
    • Environmentally friendly and cost-effective: durable, maintenance-free, and long-term savings.



Battery:

Cell type: LiFePO4 Prismatic
Cycle life: 4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal voltage: 12.8V
Nominal capacity: 100Ah
Energy: 1280Wh
Maximum expansion (parallel and series): 4P4S
Internal resistance: ≤40mΩ
Charging: Recommended charging current: 20A
Temperature range (storage): -10℃ to 50℃
Certifications: UL, FCC, CE, RoHS, UN38.3
Weight: 9.80Kg
Size: 330x172x216mm (Group31)

BMS:

BMS:100A
Maximum continuous output power: 1280W
Maximum continuous charging current: 100A
Maximum continuous discharge current: 100A
Max. discharge current 1 second: 500A



! This battery is not suitable as a starter battery.
